Installing optional Baremetal components
Step by step guide to configure and install components supporting Baremetal cluster installation.
Note
Note that the instructions are for installing on Nephio management non-KIND cluster (has been verified on kubeadm cluster). The ironic pods use host networking that KIND clusters do not support.Pre-requisites
- Access to non-kind cluster such as kubeadm cluster.
- Refer here for installing kubeadm.
- Nephio management components and porch installed.
- Refer to the “Preinstalled K8s cluster” section in Kicking off an installation on a virtual machine

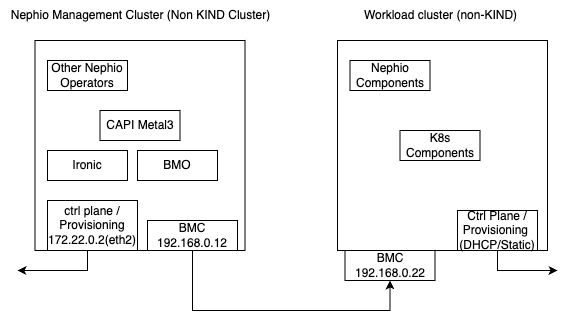

Metal3, BMO and Ironic packages install on Nephio management cluster (non-kind cluster)
Create a directory to pull the packages and initialize them
mkdir -p /tmp/baremetal_kpt
cd /tmp/baremetal_kpt
# The below three commands will create three directories named metal3, ironic and bmo
kpt pkg get https://github.com/nephio-project/catalog/infra/capi/cluster-capi-infrastructure-metal3@main metal3
kpt pkg get https://github.com/nephio-project/catalog/infra/capi/cluster-capi-infrastructure-ironic@main ironic
kpt pkg get https://github.com/nephio-project/catalog/infra/capi/cluster-capi-infrastructure-bmo@main bmo
# The below command creates a Kptfile, README.md and package-context.yaml file
kpt pkg init
Prepare for customizing the packages for your environment by executing the below steps.
Note that the below referenced configmaps bmo-configmap.yaml and ironic-configmap.yaml in the ironic and bmo packages are to be customized for the deployment environment.
Refer to the following links for further explanation of the input fields in the configmaps.
- https://github.com/metal3-io/baremetal-operator/blob/main/docs/configuration.md
- https://book.metal3.io/quick-start
- https://book.metal3.io/ironic/ironic_installation#environmental-variables
- https://github.com/metal3-io/ironic-image
bmo-configmap
---
apiVersion: v1
data:
CACHEURL: http://172.22.0.1/images
DEPLOY_KERNEL_URL: http://172.22.0.2:6180/images/ironic-python-agent.kernel
DEPLOY_RAMDISK_URL: http://172.22.0.2:6180/images/ironic-python-agent.initramfs
DHCP_RANGE: 172.22.0.10,172.22.0.100
HTTP_PORT: "6180"
IRONIC_ENDPOINT: http://172.22.0.2:6385/v1/
PROVISIONING_INTERFACE: eth2
kind: ConfigMap
metadata:
name: ironic
namespace: baremetal-operator-system
ironic-configmap
apiVersion: v1
data:
CACHEURL: http://172.22.0.1/images
DEPLOY_KERNEL_URL: http://172.22.0.2:6180/images/ironic-python-agent.kernel
DEPLOY_RAMDISK_URL: http://172.22.0.2:6180/images/ironic-python-agent.initramfs
DHCP_HOSTS: b4:96:91:c0:31:64,id:*;b4:96:91:c4:e3:f4,id:*
DHCP_IGNORE: tag:!known
DHCP_RANGE: 172.22.0.10,172.22.0.100
DNS_IP: 172.22.0.3
GATEWAY_IP: 172.22.0.4
HTTP_PORT: "6180"
IRONIC_BASE_URL: http://172.22.0.2:6385
IRONIC_ENDPOINT: http://172.22.0.2:6385/v1/
IRONIC_INSPECTOR_VLAN_INTERFACES: all
IRONIC_KERNEL_PARAMS: console=ttyS0
IRONIC_RAMDISK_SSH_KEY: PLACEHOLDER_SSH_KEY
PROVISIONING_INTERFACE: eth2
USE_IRONIC_INSPECTOR: "false"
kind: ConfigMap
metadata:
name: baremetal-operator-ironic-bmo-configmap-6cf9t7484b
namespace: baremetal-operator-system
1. Create search-replace.yaml file using the below command.
The purpose of this step is to update the data.CACHEURL field with a placeholder value that can be customized in a later step. Refer the function at https://catalog.kpt.dev/search-replace/v0.2/ to understand how this will be used by gcr.io/kpt-fn/search-replace:v0.2.0 function.
cat <<EOF > search-replace.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: search-replace-fn-config
annotations:
config.kubernetes.io/local-config: "true"
data:
by-path: data.CACHEURL
by-value: 'http://172.22.0.1/images'
put-value: 'http://CACHEURL_IP_PLACEHOLDER/images'
EOF
2. Create create-setters.yaml file using the below command.
The purpose of this step is to add comments to the fields matching the setter values using setter names as parameters. This will help later when applying our customized values for those fields. Refer the function at https://catalog.kpt.dev/create-setters/v0.1/ to understand how this will be used by gcr.io/kpt-fn/create-setters:v0.1.0 function.
cat <<EOF > create-setters.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: create-setters-fn-config
annotations:
config.kubernetes.io/local-config: "true"
data:
CACHEURL_IP: 'CACHEURL_IP_PLACEHOLDER'
CTRL_PLANE_IP: '172.22.0.2'
PROVISIONING_INTERFACE: 'eth2'
DHCP_RANGE: '172.22.0.10,172.22.0.100'
DHCP_HOSTS: 'b4:96:91:c0:31:64,id:*;b4:96:91:c4:e3:f4,id:*'
DNS_IP: '172.22.0.3'
GATEWAY_IP: '172.22.0.4'
IRONIC_SSH_KEY: 'PLACEHOLDER_SSH_KEY'
EOF
3. Create apply-setters.yaml file using the below command.
The purpose of this step is to update the field values parameterized by setters in the above step. Note: Refer the function at https://catalog.kpt.dev/apply-setters/v0.2/ to understand how this will be used by gcr.io/kpt-fn/apply-setters:v0.2.0 function.
cat <<EOF > apply-setters.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: apply-setters-fn-config
annotations:
config.kubernetes.io/local-config: "true"
data:
CACHEURL_IP: 'INSERT_VALUE_FOR_YOUR_ENVIRONMENT'
CTRL_PLANE_IP: 'INSERT_VALUE_FOR_YOUR_ENVIRONMENT'
PROVISIONING_INTERFACE: 'INSERT_VALUE_FOR_YOUR_ENVIRONMENT'
DHCP_RANGE: 'INSERT_VALUE_FOR_YOUR_ENVIRONMENT'
DHCP_HOSTS: 'INSERT_VALUE_FOR_YOUR_ENVIRONMENT'
DNS_IP: 'INSERT_VALUE_FOR_YOUR_ENVIRONMENT'
GATEWAY_IP: 'INSERT_VALUE_FOR_YOUR_ENVIRONMENT'
IRONIC_SSH_KEY: 'INSERT_VALUE_FOR_YOUR_ENVIRONMENT'
EOF
Note
- Even if static ip addressing is being used for the nodes, DHCP is still needed during the PXE boot phase to get an initial IP and boot file information. The DHCP_HOSTS should contain the mac address info of the baremetal provisioning interface(s) that would be part of cluster, DHCP_RANGE needs to be set to an IP addresses that does not conflict with static IP address range, and will be used during the PXE boot phase of the ironic python agent.
- The PROVISIONING_INTERFACE is the interface where the Nephio Management cluster control plane IP can be reached.
- The values for DNS_IP and GATEWAY_IP can be gathered from the output of
resolvectlandip routecommands on Nephio management cluster host. - The value for CACHEURL_IP and IRONIC_SSH_KEY can be ignored if unused.
4. Edit the Kptfile to add content using the below command.
The purpose of this step is to add containerized functions to be invoked by the pipeline when rendering the packages.
cat <<EOF >> Kptfile
pipeline:
mutators:
- image: gcr.io/kpt-fn/search-replace:v0.2.0
configPath: search-replace.yaml
- image: gcr.io/kpt-fn/create-setters:v0.1.0
configPath: create-setters.yaml
- image: gcr.io/kpt-fn/apply-setters:v0.2.0
configPath: apply-setters.yaml
EOF
Render and deploy the package with values customized for your environment
The next step before deploying the packages is to review that the values in the apply-setters.yaml file are specific to the
deployment environment.
Once the apply-setters.yaml file is reviewed and updated, issue the below command to update the configMap fields in the bmo and ironic directories.
kpt fn render --truncate-output=false
Sample output of above command below
Package "kpt_test/bmo":
Package "kpt_test/ironic":
Package "kpt_test/metal3":
Package "kpt_test":
[RUNNING] "gcr.io/kpt-fn/search-replace:v0.2.0"
[PASS] "gcr.io/kpt-fn/search-replace:v0.2.0" in 900ms
Results:
[info] data.CACHEURL: Mutated field value to "http://CACHEURL_IP_PLACEHOLDER/images"
[info] data.CACHEURL: Mutated field value to "http://CACHEURL_IP_PLACEHOLDER/images"
[RUNNING] "gcr.io/kpt-fn/create-setters:v0.1.0"
[PASS] "gcr.io/kpt-fn/create-setters:v0.1.0" in 900ms
Results:
[info] data.CACHEURL: Added line comment "kpt-set: http://${CACHEURL_IP}/images" for field with value "http://CACHEURL_IP_PLACEHOLDER/images"
[info] data.DEPLOY_KERNEL_URL: Added line comment "kpt-set: http://${CTRL_PLANE_IP}:6180/images/ironic-python-agent.kernel" for field with value "http://172.22.0.2:6180/images/ironic-python-agent.kernel"
[info] data.DEPLOY_RAMDISK_URL: Added line comment "kpt-set: http://${CTRL_PLANE_IP}:6180/images/ironic-python-agent.initramfs" for field with value "http://172.22.0.2:6180/images/ironic-python-agent.initramfs"
[info] data.DHCP_RANGE: Added line comment "kpt-set: ${DHCP_RANGE}" for field with value "172.22.0.10,172.22.0.100"
[info] data.IRONIC_ENDPOINT: Added line comment "kpt-set: http://${CTRL_PLANE_IP}:6385/v1/" for field with value "http://172.22.0.2:6385/v1/"
[info] data.PROVISIONING_INTERFACE: Added line comment "kpt-set: ${PROVISIONING_INTERFACE}" for field with value "eth2"
[info] data.CACHEURL: Added line comment "kpt-set: http://${CACHEURL_IP}/images" for field with value "http://CACHEURL_IP_PLACEHOLDER/images"
[info] data.DEPLOY_KERNEL_URL: Added line comment "kpt-set: http://${CTRL_PLANE_IP}:6180/images/ironic-python-agent.kernel" for field with value "http://172.22.0.2:6180/images/ironic-python-agent.kernel"
[info] data.DEPLOY_RAMDISK_URL: Added line comment "kpt-set: http://${CTRL_PLANE_IP}:6180/images/ironic-python-agent.initramfs" for field with value "http://172.22.0.2:6180/images/ironic-python-agent.initramfs"
[info] data.DHCP_HOSTS: Added line comment "kpt-set: ${DHCP_HOSTS}" for field with value "b4:96:91:c0:31:64,id:*;b4:96:91:c4:e3:f4,id:*"
[info] data.DHCP_RANGE: Added line comment "kpt-set: ${DHCP_RANGE}" for field with value "172.22.0.10,172.22.0.100"
[info] data.DNS_IP: Added line comment "kpt-set: ${DNS_IP}" for field with value "172.22.0.3"
[info] data.GATEWAY_IP: Added line comment "kpt-set: ${GATEWAY_IP}" for field with value "172.22.0.4"
[info] data.IRONIC_BASE_URL: Added line comment "kpt-set: http://${CTRL_PLANE_IP}:6385" for field with value "http://172.22.0.2:6385"
[info] data.IRONIC_ENDPOINT: Added line comment "kpt-set: http://${CTRL_PLANE_IP}:6385/v1/" for field with value "http://172.22.0.2:6385/v1/"
[info] data.IRONIC_RAMDISK_SSH_KEY: Added line comment "kpt-set: ${IRONIC_SSH_KEY}" for field with value "PLACEHOLDER_SSH_KEY"
[info] data.PROVISIONING_INTERFACE: Added line comment "kpt-set: ${PROVISIONING_INTERFACE}" for field with value "eth2"
[info] data.CACHEURL_IP: Added line comment "kpt-set: ${CACHEURL_IP}" for field with value "CACHEURL_IP_PLACEHOLDER"
[info] data.CTRL_PLANE_IP: Added line comment "kpt-set: ${CTRL_PLANE_IP}" for field with value "172.22.0.2"
[info] data.PROVISIONING_INTERFACE: Added line comment "kpt-set: ${PROVISIONING_INTERFACE}" for field with value "eth2"
[info] data.DHCP_RANGE: Added line comment "kpt-set: ${DHCP_RANGE}" for field with value "172.22.0.10,172.22.0.100"
[info] data.DHCP_HOSTS: Added line comment "kpt-set: ${DHCP_HOSTS}" for field with value "b4:96:91:c0:31:64,id:*;b4:96:91:c4:e3:f4,id:*"
[info] data.DNS_IP: Added line comment "kpt-set: ${DNS_IP}" for field with value "172.22.0.3"
[info] data.GATEWAY_IP: Added line comment "kpt-set: ${GATEWAY_IP}" for field with value "172.22.0.4"
[info] data.IRONIC_SSH_KEY: Added line comment "kpt-set: ${IRONIC_SSH_KEY}" for field with value "PLACEHOLDER_SSH_KEY"
[info] data.put-value: Added line comment "kpt-set: http://${CACHEURL_IP}/images" for field with value "http://CACHEURL_IP_PLACEHOLDER/images"
[RUNNING] "gcr.io/kpt-fn/apply-setters:v0.2.0"
[PASS] "gcr.io/kpt-fn/apply-setters:v0.2.0" in 900ms
Results:
[info] data.CACHEURL: set field value to "http://192.22.0.22/images"
[info] data.DEPLOY_KERNEL_URL: set field value to "http://192.22.0.2:6180/images/ironic-python-agent.kernel"
[info] data.DEPLOY_RAMDISK_URL: set field value to "http://192.22.0.2:6180/images/ironic-python-agent.initramfs"
[info] data.DHCP_RANGE: set field value to "192.22.0.10,192.22.0.100"
[info] data.IRONIC_ENDPOINT: set field value to "http://192.22.0.2:6385/v1/"
[info] data.PROVISIONING_INTERFACE: set field value to "ens4"
[info] data.CACHEURL: set field value to "http://192.22.0.22/images"
[info] data.DEPLOY_KERNEL_URL: set field value to "http://192.22.0.2:6180/images/ironic-python-agent.kernel"
[info] data.DEPLOY_RAMDISK_URL: set field value to "http://192.22.0.2:6180/images/ironic-python-agent.initramfs"
[info] data.DHCP_HOSTS: set field value to "a4:96:91:c0:31:64,id:*;a4:96:91:c4:e3:f4,id:*"
[info] data.DHCP_RANGE: set field value to "192.22.0.10,192.22.0.100"
[info] data.DNS_IP: set field value to "192.22.0.3"
[info] data.GATEWAY_IP: set field value to "192.22.0.4"
[info] data.IRONIC_BASE_URL: set field value to "http://192.22.0.2:6385"
[info] data.IRONIC_ENDPOINT: set field value to "http://192.22.0.2:6385/v1/"
[info] data.IRONIC_RAMDISK_SSH_KEY: set field value to "P_SSH_KEY"
[info] data.PROVISIONING_INTERFACE: set field value to "ens4"
[info] data.CACHEURL_IP: set field value to "192.22.0.22"
[info] data.CTRL_PLANE_IP: set field value to "192.22.0.2"
[info] data.PROVISIONING_INTERFACE: set field value to "ens4"
[info] data.DHCP_RANGE: set field value to "192.22.0.10,192.22.0.100"
[info] data.DHCP_HOSTS: set field value to "a4:96:91:c0:31:64,id:*;a4:96:91:c4:e3:f4,id:*"
[info] data.DNS_IP: set field value to "192.22.0.3"
[info] data.GATEWAY_IP: set field value to "192.22.0.4"
[info] data.IRONIC_SSH_KEY: set field value to "P_SSH_KEY"
[info] data.put-value: set field value to "http://192.22.0.22/images"
Successfully executed 3 function(s) in 4 package(s).
Once the ConfigMap values for the packages have been updated, issue the below commands to deploy the packages to the cluster.
kpt live init
kpt live apply --reconcile-timeout=15m --output=table
Verify that the pods are up and running using the below command
kubectl get pods --all-namespaces | grep -E '^(capm3-system|baremetal-operator-system)'
Sample output
baremetal-operator-system baremetal-operator-controller-manager-5c55b458cf-bcbkd 1/1 Running 0 28d
baremetal-operator-system baremetal-operator-ironic-6888bb9cd5-782px 4/4 Running 0 28d
capm3-system capm3-controller-manager-65c5895cc4-kznsm 1/1 Running 0 28d
capm3-system ipam-controller-manager-69f4dd4cdf-zgl55 1/1 Running 0 28d
Baremetal cluster creation .
Note
Note that only a single node cluster with IPv4 static IP addressing is supported at this time.Pre-requisites
- Refer the link at https://book.metal3.io/bmo/supported_hardware#supported-hardware for the Baremetal pre-requisites
- Access to bare metal servers with BMCs connected to a network and accessible to the Nephio management cluster.
- Download the kubeadm node image found at
https://artifactory.nordix.org/ui/native/metal3/images/ and copy the image to the ironic pod.
Note that the image has to be copied all over again if the pod restarts.
kubectl cp <IMAGE_NAME>.qcow2 baremetal-operator-system/<ironic-pod-name>:/shared/html/images/<IMG_NAME>.img -c ironic-httpd -n baremetal-operator-system
Repository creation to access the packages in the baremetal folder
cat << EOF | kubectl apply -f -
apiVersion: config.porch.kpt.dev/v1alpha1
kind: Repository
metadata:
labels:
kpt.dev/repository-access: read-only
kpt.dev/repository-content: external-blueprints
name: baremetal-packages
namespace: default
spec:
content: Package
deployment: false
git:
branch: main
directory: /infra/baremetal
repo: https://github.com/nephio-project/catalog.git
type: git
EOF
Confirm that repository is created using the below command
kubectl get repositories
Sample output
NAME TYPE CONTENT DEPLOYMENT READY ADDRESS
baremetal-packages git Package false True https://github.com/nephio-project/catalog.git
Confirm that packagerevisions are available for the baremetal creation
kubectl get packagerevisions
Sample output
NAME PACKAGE WORKSPACENAME REVISION LATEST LIFECYCLE REPOSITORY
baremetal-packages.bmh-template.main bmh-template main -1 false Published baremetal-packages
baremetal-packages.kubeadm-cluster-template-staticip.main kubeadm-cluster-template-staticip main -1 false Published baremetal-packages
BareMetalHost CR creation
Create a new PackageVariant CR for creating a BareMetalHost CR that is needed to be created before creating a cluster.
Have the below information ready for the baremetal server to be used in packagevariant CR creation.
- BMC username that is base64 encoded
- BMC password that is base64 encoded
- Boot MAC address (can be obtained from Redfish APIs or Server vendor BMC CLI/UI )
- Serial number of the disk drive where OS will be installed (can be obtained from Redfish APIs or Server vendor BMC CLI/UI )
Note: Replace the values under spec.pipeline.mutators.configMap with values specific to your server.
cat << EOF | kubectl apply -f -
apiVersion: config.porch.kpt.dev/v1alpha1
kind: PackageVariant
metadata:
name: bmh-sno1
spec:
upstream:
repo: baremetal-packages
package: bmh-template
revision: -1
workspaceName: main
downstream:
repo: mgmt
package: bmh-sno1
annotations:
approval.nephio.org/policy: initial
pipeline:
mutators:
- image: "gcr.io/kpt-fn/apply-setters:v0.2.0"
configMap:
bmc-username: ZXhwZXJpbWVudFVzZXJuYW1l
bmc-password: ZXhwZXJpbWVudFBhc3N3b3Jk
bmh-name: bmh1
boot-mac-address: 00:11:22:33:44:55
root-hints-serial-number: PQZ123
bmc-address: idrac-redfish://10.0.0.1/redfish/v1/Systems/1
bmc-creds-name: bmc-secret1
EOF
Verify that the packagevariant and bmh CRs are created using the below commands
kubectl get packagevariants
kubectl get bmh
Single Node Cluster creation using IPv4 Static IP addressing
Create a new PackageVariant CR for creating a single node cluster.
Have the below information ready from the server (either via Redfish APIs or the server vendors BMC UI/CLI) and/or from your lab admin.
- Static address IP pool information (IPv4) that includes start IP address, end IP address and network prefix
- Network address, DNS IP(s), Gateway IP
net-link-eth-idcan be obtained from looking up thestatus.hardware.nicsfield of thebmhCR created in above step
Note: Replace the values under spec.pipeline.mutators.configMap with values specific to your environment.
cat << EOF | kubectl apply -f -
apiVersion: config.porch.kpt.dev/v1alpha1
kind: PackageVariant
metadata:
name: cluster-staticip
spec:
upstream:
repo: baremetal-packages
package: kubeadm-cluster-template-staticip
revision: -1
workspaceName: main
downstream:
repo: mgmt
package: cluster-staticip
annotations:
approval.nephio.org/policy: initial
pipeline:
mutators:
- image: "gcr.io/kpt-fn/apply-setters:v0.2.0"
configMap:
cluster-name: staticip-cluster
namespace-value: default
ctrl-plane-ip: 172.168.14.37
ctrl-plane-port: "6443"
k8s-version: v1.29.0
img-checksum: 5f1aea8dba3d7c5e0c4db8b2a83747f296adab6463e57a45610a5e544058aaca
img-checksum-type: sha256
img-format: qcow2
img-url: http://172.168.14.61:6180/images/ubuntu-22.04-server-cloudimg-amd64-updated.img
ippool-start-ip: 172.168.14.37
ippool-end-ip: 172.168.14.37
ippool-prefix: "27"
net-link-eth-id: "ens1f0"
net-link-eth-mac-addr: "00:11:22:33:44:55"
net-svc-dns: |
- 172.168.14.35
net-ipv4-gw: 172.168.14.33
net-ipv4-nw-addr: 0.0.0.0
ctrl-node-user: ubuntu
ctrl-node-hashed-passwd: $6$n7odPOnQCIM0c4qB$px8Vm7z/xj4TRAIvd3WTfIv4ZNbvelpXAZT1Sv3XppYquLbJ3abUUnXTR0vvOr/eeQJnmBxTSELoTPZnQ3ni50
ctrl-node-ssh-key: 'ssh-rsa key nobody@nobody'
EOF
Verify that the packagevariant and cluster CRs are created using the below commands
kubectl get packagevariants
kubectl get clusters
Note
NOTE: The network diagram highlights simple connection between Nephio management cluster (provisioning cluster) and workload cluster (target). The diagram does not consider switches or routers. If you are using switches then make sure the connectivity is properly configured.
